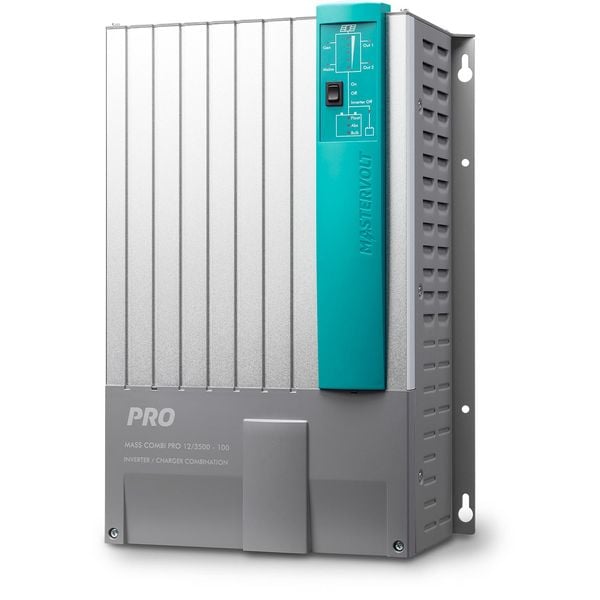

The Mastervolt Mass Combi Pro combines a powerful 3 step battery charger along with a heavy duty true sine wave power inverter to provide AC output to operate household items. The unit can be connected up to shore power or a generator for charging and the AC output will automatically switch between mains and inverter mode. It has two separate AC outputs, allowing critical equipment to be put on a different circuit to other appliances to protect them from heavy loads. The inverter/charger is built to be reliable and user friendly, and is equipped with MasterBus Combi integration for easy operation along with the rest of your Mastervolt system.
The Mass Combi Pro features the Power Assist function, which prevents main fuses or breakers being tripped in the event of a weak power supply. It also eliminates power failures and dips to maintain reliable performance. The unit is equally capable at handling heavy loads and more sensitive loads, and with a true sine wave output will not cause harm or damage to your appliances. The high frequency technology used eliminates noise typically associated with power inverters, such as buzzing or humming.
This model can be used in a 3 phase system, or you can combine up to 10 units in parallel for higher power outputs.
Specifications sine wave inverter
- Nominal DC voltage: 12 V (9.5-16 V)
- Output voltage: 180-260 V, adjustable
- Output frequency: 50/60 Hz (± 0.005 %), configurable
- Output waveform: true sine
- Continuous power at 40 °C / 104 °F, cos phi 1: 3000 W
- Max. peak load: 6000 W
- Max. efficiency: ≥ 90 %
- Max. ripple on DC (battery at full load): 5 %
- No-load power consumption on DC (ON/inverter OFF/OFF): 26 W / 4 W / 0 W
- Energy saving mode consumption: 7 W
- Parallel configuration: yes, up to 10 units (for larger systems, an external transfer system is required)
- 3-Phase configuration: yes, up to 3×3
- Synchronise with mains/generator: yes
Specifications battery charger
- Input voltage range: 184-275 V
- Max. input current: 12 A
- Max. charge current at 40 °C / 104 °F: 150 A at 14.25 V, adjustable
- Battery temperature sensor: yes, included
- Battery voltage sense: through MasterShunt, otherwise automatic compensation
Specifications transfer system
- AC input (generator): 50 A (switched)
- AC input: 30 A (switched)
- AC output 1: 67 A
- AC output 2: 50 A (switched)
- AC input fuse: no
- Transfer speed: seamless ( 1 ms)
- Transfer voltage range: 184-275 V, adjustable
- Transfer frequency range: 35-68 Hz, adjustable
General specifications
- Galvanisedanic isolation: yes
- Display/read-out: LED display
- Dimensions, hxwxd: 472 x 318 x 178mm (18.6 x 12.5 x 7.0 inch)
- Weight: 15.3 kg (3.7 lb)
- Compliance: CE, E-mark, ABYC
Technical specifications
- Charge characteristic: IUoUo, automatic / 3-step+ for Gel/AGM/MLI/ flooded/spiral/traction
- Recommended battery capacity: ~ 300-900 Ah (based on gel batteries, may differ for other types)
- Ground relay: yes, configurable
- Temperature range (ambient temp.): -25 °C to 60 °C, derating > 40 °C (-13 °F to 140 °F)
- Cooling: vario fan
- Protection degree: IP23 (vertical mounting)
- Safety class: IEC protection class I
- Humidity protection: conformal coating, max. 95 % relative humidity, non condensing
- Protections: over temperature, overload, short circuit, high/low battery voltage
- Power Assist: yes
- MasterBus compatible: yes
