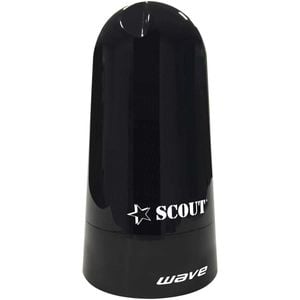

The Scout Wave compact omnidirectional TV/FM antenna is designed to receive all analogue and digital terrestrial TV and FM signals through a full 360 degrees. It is suitable for all kinds of boats, matching the design of both Scout KS-12 and Sea-Connect antennas.
The marine antenna measures only 20cm high and 11cm in diameter with a UV resistant ASA body which is 100% waterproof and protected against colour deterioration. It features a high gloss black finish.

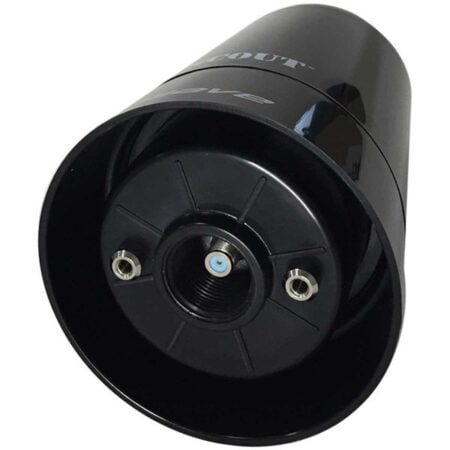

The antenna is easy to install on standard 1″ x 14 threaded mounts or on the deck as a permanent fixture with the through-hole mounts (on non-metal surface/enclosure).
The wave antenna’s omnidirectional design eliminates the time needed to locate the direction of the TV and radio transmitter, and the built-in high gain amplifier (25 dB) with low noise guarantees excellent picture quality, on both horizontal and vertical polarisation. The splitter/power inserter included with the antenna allows to connect two devices at the same time, TV or radio FM.
The whole system is quick and easy to wire, and thanks to the 2-output power inserter you can connect your TV and FM radio to the same antenna.
The superior picture quality makes the Scout Wave the perfect choice for boaters who want to enjoy premium TV and radio onboard.
Wave contents:
– Antenna
– 12V power inserter/splitter 2 outputs
– 12V fused power cable
– Coax cable 75 Ohm 10 metre (33 feet)
– TV cable 1 metre (3.3 feet)
– 2x F-type male connector
– 2x Screw
– 4x Washer
– 2x Grower washer
– 4x Nut
Reception: Omnidirectional 360°
Channels: 2 – 69
Input: 12V DC
Noise: <1.7db
Output: 2
